Question 1

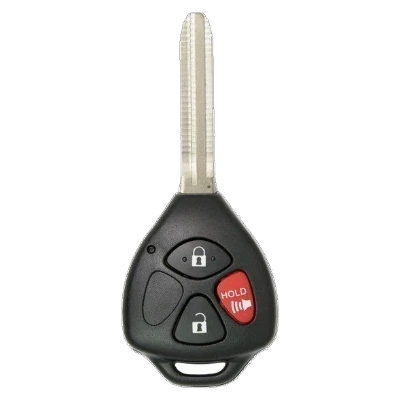

How many buttons does the 2008 Scion XD remote head key have?

Accepted Answer

Three buttons. On the factory remote head for this year, you get lock, unlock, and panic. During every programming appointment I run each button individually and confirm the vehicle responds before I call the job done. A key that starts the car but has a dead panic button isn't a finished job.

Question 2

What exactly is a remote head key and how is it different from a regular key?

Accepted Answer

A remote head key looks like a standard key but the head is larger because it houses two separate systems. There's a transponder chip embedded in the head that communicates with the immobilizer every time you turn the ignition. Without a valid signal from that chip, the car will crank and immediately shut off, no matter how good the blade cut is.

The second system is the RF transmitter, which is the part that locks and unlocks the doors remotely. That signal is encrypted and has to be paired to the vehicle separately from the transponder enrollment.

So one physical key, two distinct programming steps, and if either one is missed or done wrong, you'll notice. That's why this isn't a hardware-store duplicate or a quick online flash job.

Question 3

What kind of equipment does a mobile locksmith actually need to program one of these?

Accepted Answer

For the 2008 XD specifically, you need a programmer that can reach Toyota's immobilizer through the OBD port and handle both transponder enrollment and remote pairing in one session. I carry multiple platforms that cover this, including tools capable of all-keys-lost recovery, which is the harder job where there's no working key left to read from.

On top of the programmer, you need proper key-cutting equipment to get the blade right. A blade that's off by a few thousandths of an inch will feel like it turns and then bind, which is a fast way to wear out an ignition cylinder.

The equipment side of this work runs into the thousands of dollars and takes real training to use correctly. It's not a one-tool situation, especially when the job shows up at 7:30am in a parking lot.

Question 4

I still have one working key. Does that change how the job goes?

Accepted Answer

Yes, it makes it faster and cleaner. When there's at least one valid key present, the programmer can read the existing immobilizer data and add the new key into the system without a full reset. All-keys-lost is a longer process because the system has to be handled differently when there's nothing to read from.

If you've got a working key, keep it somewhere safe until after the appointment. Don't leave it at home "just in case" and then come to me with only the broken one.

Question 5

The battery in my XD key fob died. Will replacing it fix the remote, or does it need to be reprogrammed?

Accepted Answer

Swapping the battery is always the first move. The 2008 XD remote head takes a CR2016, which is a thin coin cell. Pop the old one out, seat the new one correctly with the positive side facing the right direction, and test all three buttons.

Here's the thing most people don't know: on these Toyota-based systems, the remote side can sometimes lose its pairing after power is interrupted, even from a dead battery. If you replace the CR2016 and the buttons still don't work but the key still starts the car, that's what happened. The transponder is fine because it draws power differently. The RF transmitter lost its link. That's a quick relearn on my end, not a full replacement job. Don't buy a whole new key before you call.
