Question 1

My flip key blade broke off inside the ignition. Can you get it out and fix the key?

Accepted Answer

Yes, extraction plus shell replacement is a standard job on these. The flip mechanism on VW remote flip keys has a pivot held by a small roll pin. Over time that pin backs out, the blade gets loose, and under enough stress it separates or snaps. When that happens inside a lock cylinder it's a bad day, but it's recoverable.

The process is: extract the broken blade from the cylinder, transfer your original transponder chip and the fob electronics into a fresh replacement shell, then cut a new blade to your vehicle. As long as the original chip comes over intact, no reprogramming is needed. The immobilizer already knows that chip.

Skip the super glue. It holds for maybe a week on a flip key under daily use, and then you're dealing with adhesive residue inside the barrel on top of the original problem.

Question 2

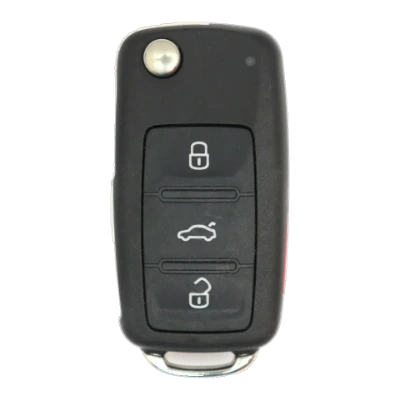

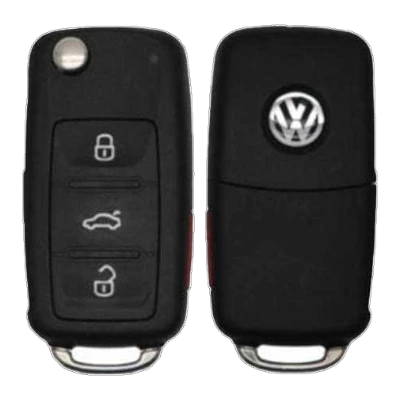

What exactly is a remote flip key and how does it work on the 2014 EOS?

Accepted Answer

It's a folding key where the metal blade tucks into the fob body when not in use and flips out when you press a button on the side. The 2014 EOS uses a 4-button version running a CR2032 battery.

There are two systems working inside one key. The transponder chip handles the immobilizer side, it communicates with the vehicle's security system every time you turn the ignition, and the car won't run without it. The remote side handles the buttons, lock, unlock, and the other functions, and that runs off the fob battery. Dead battery means you lose the buttons but you can still start the car. Unenrolled or damaged chip means the car cranks and immediately stalls regardless of battery condition. Knowing which system failed saves a lot of time diagnosing.

Programming has to be done with the right diagnostic equipment. There's no onboard button sequence for enrolling a new key on this system.

Question 3

My Volkswagen EOS is showing a key warning on the dash and won't start. Where do I begin?

Accepted Answer

Start with the fob battery. A weak CR2032 can cause more than just short button range. Swap it first, make sure the contacts inside the fob are clean and seated flat, and retest.

If the car cranks but stalls immediately and you're seeing an immobilizer-related warning on the dash, that's the transponder side of the problem, not the battery. A cracked or damaged chip will still let the remote functions work, locking and unlocking the car, while completely blocking the start. Owners get confused by that because the buttons seem fine.

One thing that does come up on older VW platforms is attempting an immobilizer reset by leaving the key in the ignition in the on position for an extended period. Whether that applies to your specific situation depends on what diagnostic reads are showing. If the battery swap doesn't change anything and the car keeps stalling on start, the key needs to be looked at with a proper scan, and likely reprogrammed or replaced.

Question 4

Can I buy a replacement fob online and just have it programmed, or does it need to be a specific blank?

Accepted Answer

You can buy online, but check the factory FCC ID on your original fob before ordering anything. If the replacement blank doesn't match that identifier, the programming process gets complicated or doesn't work at all. A lot of VW owners on forums have landed with blanks that are close but not right for their specific vehicle, and then they're out the cost of the blank on top of the service call.

If you're not sure, just bring the vehicle. I source blanks that are confirmed compatible for the 2014 EOS, so you're not gambling on a fob that might not take programming.

Question 5

I have one working key for my EOS. Is it worth getting a spare cut and programmed now, or can I wait?

Accepted Answer

Get the spare now. All-keys-lost on a VW with this key system is a longer, more involved job than adding a second key while you still have a working one. When there's an enrolled key present, the process is faster and generally less complex. When there are zero working keys, the procedure takes more time and more steps because the system has to be handled differently.

Running on one key also means one lost or broken flip mechanism away from being stranded. These fobs see daily mechanical stress every time that blade is deployed. It's not a matter of if, it's when.
