Question 1

Do I have to go to the Jaguar dealer to get a replacement key for my 2006 S-Type?

Accepted Answer

No. The dealer is not the only option, but this is one of those vehicles where a lot of general locksmiths will turn the job down. The 2006 S-Type uses a security system that requires JLR-capable diagnostic equipment to register a new key. Basic key programmers won't get there. Most hardware stores that cut keys won't touch it at all.

A mobile locksmith who has invested in the right tools for Jaguar and Land Rover work can handle the full job on site. That means cutting the replacement blade to your vehicle, programming the transponder to the immobilizer, and registering the remote functions, all in one visit at your location in Rancho Santa Fe. You don't need a tow, you don't need an appointment three days out, and you don't need to leave the car at a shop.

Question 2

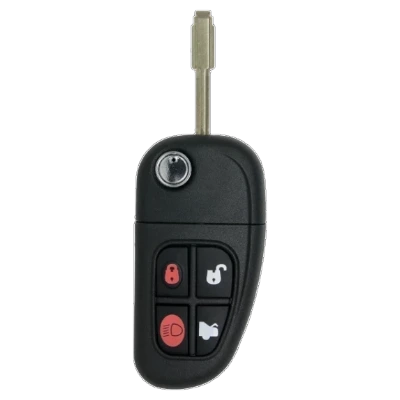

What exactly is a remote flip key and how does it work on the 2006 S-Type?

Accepted Answer

It's a folding key where the metal blade flips out from the fob body when you press a release button. Inside the fob there are two separate systems doing two separate jobs.

The transponder chip communicates with the vehicle's immobilizer every time you turn the ignition. If the chip isn't recognized, the car may crank but the engine won't stay running. That side of the key has nothing to do with the battery in the fob. It runs passively off a signal from the ignition.

The remote side handles your lock, unlock, and the other button functions. That part runs off the CR2032 battery. When the battery gets weak, the remote range drops first. The car will still start fine, but you're pressing the button from two feet away instead of twenty.

Both sides have to be correctly programmed for the key to work the way it should. The transponder gets registered to the immobilizer through the diagnostic port. The remote gets paired through the same process. One visit, both done together.

Question 3

How long does the dealer take to replace a key on a 2006 Jaguar S-Type?

Accepted Answer

Longer than it should. The actual programming time is not the problem. The problem is everything around it: scheduling an appointment, the possibility that the fob isn't in local stock and has to be ordered by VIN, and if you've lost your only key, figuring out how to get the car there in the first place.

Owners on Jaguar forums have reported waits ranging from same-day if parts are in stock to several days when they aren't. And the dealer will want the vehicle in the bay to complete the work, so you're without your car for however long that takes.

A mobile visit to Fairbanks Ranch cuts all of that out. The job is done where the car sits, in one appointment, typically under an hour for a spare key when a working key is already present.

Question 4

I lost all the keys to my 2006 S-Type. Is that a harder job than just adding a spare?

Accepted Answer

Yes, and it's worth being upfront about that.

When a working key is present, the process is adding a new key alongside the existing one. The module reads the current key data and the new fob gets enrolled. Faster, cleaner.

All-keys-lost on the 2006 S-Type means the module has no reference to work from. The procedure involves accessing the key registration data through the diagnostic port using JLR-capable equipment, clearing the old key memory, and enrolling the new key or keys from scratch. The immobilizer needs to accept the new transponder with no existing key in the system to help confirm identity.

It takes longer and the equipment requirements are stricter. Not every locksmith who says they do Jaguar work has done a true all-keys-lost on this generation. Worth asking directly before someone shows up. We handle it, but we want the job scoped correctly from the start so there are no surprises on site.

Question 5

The battery is new but my S-Type key remote barely works. What's going on?

Accepted Answer

Check how the battery is seated. The CR2032 contact inside the 2006 S-Type fob is easy to slightly bend during a battery swap, and a battery that's sitting a fraction off won't make solid contact even if it reads full voltage in a tester.

Open the fob again, look at the positive contact, and make sure the battery is flat and centered. Also check that neither contact point has corrosion or residue from a battery that was left in too long.

If the contacts look fine and the range is still poor, the fob itself may need reprogramming. These remotes can lose their pairing without losing the transponder function, which is why the car still starts but the buttons do nothing useful past arm's length.
