Question 1

My key broke in the ignition. Can you get it out?

Accepted Answer

Yes, and on the B5-generation Passat this is not a rare call. The remote flip key on these cars pivots on a small roll pin inside the shell. Over years of use, the pin loosens or the surrounding plastic cracks at the hinge, and the blade can detach mid-use, including inside the ignition cylinder. We extract the broken piece on site, then transfer your original transponder chip and the remote electronics into a new shell and cut a fresh blade. As long as the chip comes over intact, no reprogramming is needed. The immobilizer already knows that chip. One owner tried epoxy to hold a cracked shell together. It lasted about a week. A proper shell swap is the right call.

Question 2

What exactly is a remote flip key and how does it work on a 2001 Passat?

Accepted Answer

It is a folding key where the metal blade tucks into the fob body when not in use and flips out when you press the release button. Your 2001 Passat uses a 4-button version. Inside the fob there are two separate systems doing different jobs. The remote side handles lock, unlock, and the other buttons, and it runs off a CR2032 battery. The transponder side is a small chip that communicates with the immobilizer every time you turn the ignition. That chip has no battery of its own. It gets its power from a coil around the ignition cylinder. If the transponder side isn't recognized, the car cranks but the engine shuts down immediately. The remote side and the transponder side can fail independently, which is why a key that still works the doors remotely can still leave you stranded at startup.

Question 3

My Volkswagen is showing a warning and won't start. Is it the key?

Accepted Answer

First, swap the CR2032. A dead fob battery on this generation can cause more problems than just short range. After that, pay attention to what the car is actually doing. If it cranks normally but the engine fires and immediately dies, that points to the transponder side of the key or the immobilizer not completing its handshake. A key-not-detected or security-related warning on the dash alongside a crank-no-run condition is the pattern to watch for. Some owners on Passat forums have noted that swapping the chip between shells without care can crack it, and a cracked chip will still allow the remote functions to work while killing the start every time. If the battery swap doesn't resolve it and the car shows that same crank-then-die behavior, the key needs to be diagnosed or replaced. We can sort that on site in Seven Oaks.

Question 4

Can I buy a replacement flip key online and program it myself?

Accepted Answer

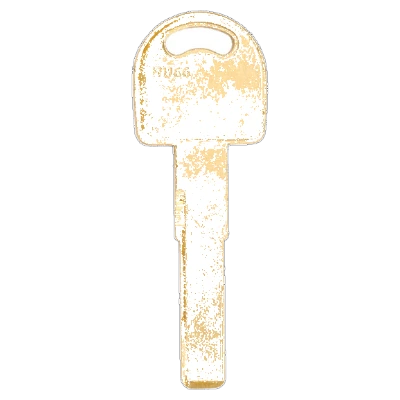

The blade you can cut anywhere once you have the right blank. The transponder programming is a different matter. The 2001 Passat immobilizer requires the PIN code to add a new key. That PIN is not printed anywhere on the car. It either gets read electronically through the OBD port using the right tool, or retrieved through a dealer process. Without the PIN, a new chip cannot be enrolled. There is no ignition-turn sequence or button trick that bypasses this on a Passat of this generation. So if you bought a fob shell online, the blank and the shell work fine as parts, but you still need someone with the correct equipment to read the PIN and do the programming. That is exactly what we bring to you.

Question 5

The immobilizer light stays on and the car won't start, but my key is fine. What's going on?

Accepted Answer

On the 2001 Passat, the immobilizer data lives in the instrument cluster, not just the engine control module. Those two modules have to be matched to each other. If someone swapped a cluster, replaced an ECU, or if the cluster has had a fault, the immobilizer can go into a lockout state that has nothing to do with the key itself. A persistent security warning with a no-start condition, even when the key is known good, is a sign the modules need to be checked for adaptation. This is not a simple battery swap fix. It needs a diagnostic read to see whether the issue is the key, the cluster, or the ECU pairing. We carry the equipment to diagnose and address that on site.
