Question 1

My key broke in the ignition. Can you get it out?

Accepted Answer

Yes. On the 2004 F-150, the ignition cylinder takes the full remote head key, blade and all. When the blade snaps off inside, the situation feels worse than it usually is. The broken piece can be extracted without pulling the whole column apart in most cases.

Here's the part that catches people off guard: even after extraction, if the broken blade is still in the cylinder when you try to crank, the truck won't start because the transponder is no longer positioned correctly for the antenna ring to read it. So you get dash lights, nothing else. We extract the fragment, decode the cut from the lock, and produce a replacement cut to that same code. No guessing, no re-keying the whole ignition unless the cylinder itself is damaged in the process.

Question 2

What exactly is a remote head key and how is it different from a regular key fob?

Accepted Answer

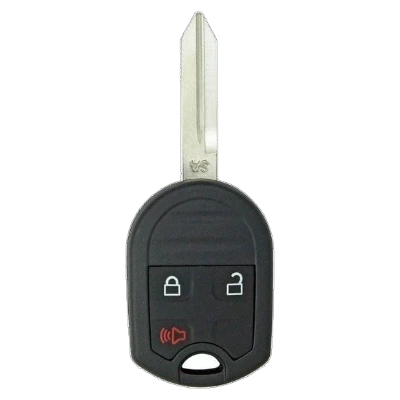

A remote head key is one piece. The buttons are molded into the top of the key itself, not clipped onto a separate ring. Your 2004 F-150 uses a 3-button version of this setup.

Inside that housing you've got two systems working independently. The transponder chip talks to the immobilizer through a passive antenna loop around the ignition cylinder. No battery needed for that part. The remote electronics handle your lock and unlock signals, and those run off the CR2032.

The reason this matters practically: if your battery dies, your remote buttons stop working but the truck still starts. If the truck suddenly won't start, that's not a battery problem. That's an immobilizer or chip read issue and needs a different diagnosis entirely.

Question 3

My Ford is showing a key warning on the dash. What should I do first?

Accepted Answer

On the 2004 F-150, the first thing to check is the CR2032 in the remote head key. A weak battery can cause inconsistent reads and trigger a warning even when the key itself is fine.

If a fresh battery doesn't clear it, try this: hold the key closer to the steering column when you turn the ignition. The antenna ring that reads the transponder chip is right around the lock cylinder. If a cracked or separated housing has shifted the chip position even slightly, moving it closer sometimes gets you a start.

What you don't want to do is keep cranking and trying over and over. The immobilizer on these trucks tracks failed attempts, and stacking up repeated failed starts can push you into a lockout state that needs a programmer to clear. If fresh battery and closer positioning don't work, call before you keep cycling the key.

Question 4

I bought a replacement remote head key online. Can I program it myself?

Accepted Answer

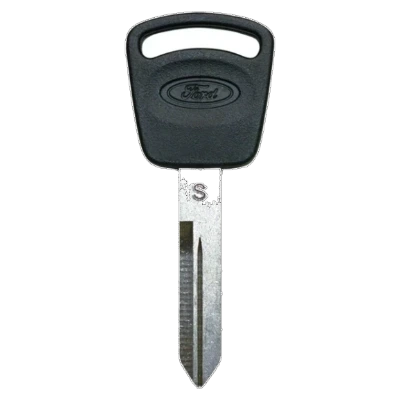

The 2004 F-150 does have an onboard key relearn sequence for adding a transponder key when you still have two working programmed keys on hand. If you have two good keys, there's a procedure using those two keys and the ignition that can add a third without any external tool.

If you only have one working key, or zero, that onboard trick won't work. You need a programmer connected to the OBD port to write the new key into the immobilizer. The key you bought online is just a blank until something programs it.

So the short answer: maybe, if you have two working keys already. Otherwise, no.

Question 5

My 2004 F-150 starts fine but the remote buttons stopped working. Do I need a whole new key?

Accepted Answer

Probably not. The remote and the transponder chip are independent inside that housing. If the truck starts normally, the chip is reading fine. Dead buttons almost always trace back to one of three things: a dead CR2032, a corroded battery contact inside the housing, or a cracked housing that's broken the connection to the remote circuit board.

Swap the battery first. If the housing has any visible cracks or flex to it, that's likely the culprit. A replacement housing with a fresh battery is a much cheaper fix than a full new programmed key. On the other hand, if the housing is intact and a new battery changes nothing, the remote board inside may have failed. At that point replacing the full remote head key and reprogramming is the right move.
