Question 1

My key broke in the ignition. Can you get it out?

Accepted Answer

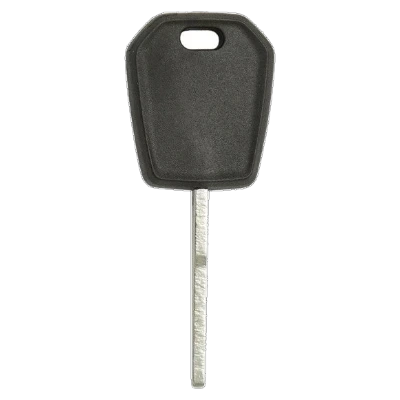

Yes. On F-150 models with a traditional ignition cylinder this is a standard extraction job. One thing worth knowing on the 2017: even if you get the broken piece out yourself, if the transponder chip was in the portion that snapped off and is no longer sitting correctly in the cylinder, the immobilizer may not read it and the engine won't crank. Dashboard lights come on, starter does nothing. That's not a dead battery -- that's the security system not seeing an authorized key.

We extract the fragment without damaging the lock, decode the cylinder, and cut a proper replacement. Starting fresh also means you're not back in the same situation in six months from a key that was already weakened before it broke.

Question 2

What actually is a smart key, and how is it different from a regular key?

Accepted Answer

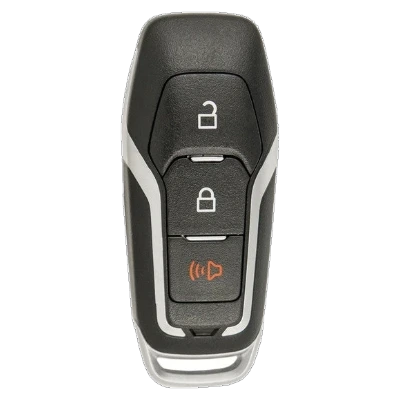

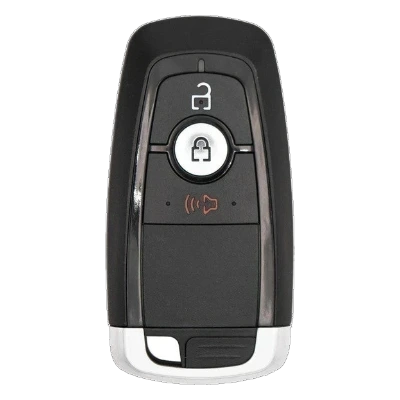

A smart key does two separate jobs at once. It has a transponder chip inside that communicates with the immobilizer when you go to start the truck -- if the vehicle doesn't recognize the chip, it won't run, full stop. It also has the remote buttons for locking, unlocking, and other functions built into the same housing.

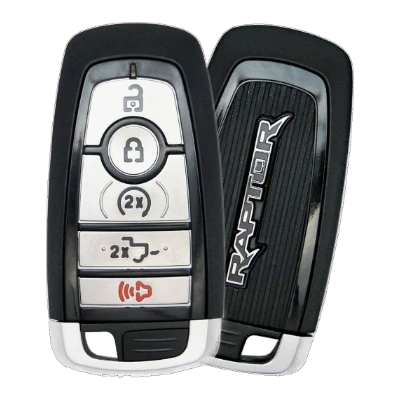

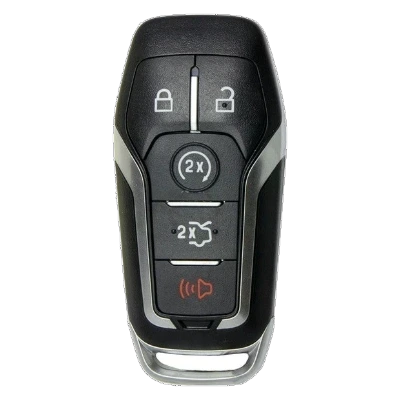

Your 2017 F-150 uses exactly this setup: a 5-button fob that handles both jobs. The physical blade stored inside the fob is the backup if the electronics ever quit or the battery dies completely -- it gets you in the door manually. But starting the truck still depends on the chip being recognized. That's why a damaged or cracked fob isn't something to ignore even if the buttons still work. If the board inside gets damaged, you can lose start capability without any warning.

Question 3

My F-150 says it's not detecting the key. What should I do first?

Accepted Answer

Start with the backup. The 2017 F-150 has a designated spot, typically in the center console area, where you can place the fob directly against the surface to get a start even when the wireless signal isn't reaching the vehicle. If that works, your problem is almost certainly the CR2450 battery -- go get a fresh one and seat it cleanly.

If the backup slot doesn't work either, stop hammering the start button. The immobilizer logs repeated failed attempts and after enough of them, clearing the lockout condition requires diagnostic equipment. You don't want to dig a deeper hole. Call someone with the right tools before it gets to that point.

Question 4

I lost both keys to my 2017 F-150. Is all-keys-lost even possible on a smart key truck, or do I need the dealer?

Accepted Answer

All-keys-lost on the 2017 F-150 smart key system is a job I do regularly. It requires professional diagnostic equipment connected through the OBD port to reset the key memory and enroll new fobs from scratch. There is no ignition-turn sequence or button trick for this -- that type of onboard relearn only applies to older vehicles with a key in an ignition cylinder, not a smart key system like the one on your truck.

The process wipes the lost fobs from the system so they can no longer start the vehicle, then programs whatever new keys you need. Plan for roughly 45 minutes to an hour on site. I can come to you in Downtown Lemon Grove or wherever the truck is sitting.

Question 5

Can I buy a fob online and just have you program it, or does it need to be your blank?

Accepted Answer

You can bring your own fob, but verify the factory FCC ID on the back of your original key matches what you bought before we meet. Fob compatibility on the 2017 F-150 is specific, and there are enough listings online with vague fitment descriptions that mismatches happen more than people expect.

If the fob you bought matches the correct ID, I can program it. If it doesn't pair, it doesn't pair -- that's not a programmer issue, it's a hardware mismatch. I always carry the correct blank for this truck, so if yours turns out to be wrong, we're not stuck.
