Question 1

My VW EOS key blade broke off in the ignition. Can you get it out and fix this?

Accepted Answer

Yes. This is one of the most common VW flip key failures. The switchblade mechanism on the 5K0837202AK shell is held by a small roll pin, and over time the plastic pivot cracks or the pin loosens. The blade detaches or snaps clean off inside the ignition cylinder. I extract the broken piece, transfer your original Megamos 48 transponder chip and remote electronics into a new shell, and cut a fresh HU66 blade. As long as the original chip moves over intact, no reprogramming is needed. One owner I talked to tried super glue on his broken flip key. It lasted two days.

Question 2

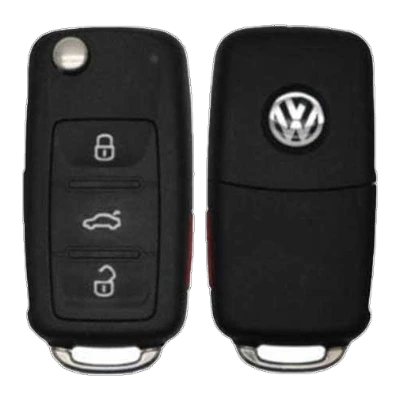

What exactly is the remote flip key on my 2010 Volkswagen EOS?

Accepted Answer

It is a switchblade-style key where the metal blade folds into the fob body. Yours carries FCC ID NBG010180T, part number 5K0837202AK, four buttons (lock, unlock, trunk, panic), a CR2032 battery for the remote functions, and a Megamos Crypto 48 transponder chip inside that talks to the Immo4 immobilizer module every time you turn the ignition. The remote buttons handle the doors and trunk wirelessly. The transponder chip handles engine authorization passively through the ignition ring. Two separate systems living in one housing. Without professional programming through OBD with the correct Immo4 security login, even a perfectly cut blade gets rejected by the car.

Question 3

My 2010 EOS dashboard shows an immobilizer warning and the engine cranks but will not start. What now?

Accepted Answer

Start with the easy stuff. Swap in a fresh CR2032, but know that a dead remote battery would not cause this specific symptom. If the engine cranks but will not fire and you see the yellow immobilizer icon (a car with a key outline) on the cluster, the issue is the transponder chip or the Immo4 module not recognizing it. Some VW owners on forums report a "SAFE" message on the radio display at the same time, which is a separate anti-theft flag on the head unit. On the 2010 EOS, you cannot reset the immobilizer by waiting or cycling the key. The chip needs to be re-registered or a new key programmed through the OBD port with the correct security code pulled from the instrument cluster.

Question 4

Can I buy a 2010 EOS flip key online and program it myself at home?

Accepted Answer

No. The Immo4 system on the PQ35 platform does not have a self-learn procedure or an ignition-cycle trick. There is no owner-accessible button sequence. You need a diagnostic tool that can pull the SKC (secret key code) from the instrument cluster, typically the 1K0 920-series cluster in the EOS, and write the new Megamos 48 chip to the immobilizer. If you already bought a blank key online, bring it. I can cut and program it on site. Just make sure the transponder slot accepts a Megamos Crypto 48 and the remote board matches the 5K0837202AK layout, or you are paying twice.

Question 5

My 2010 EOS remote buttons stopped working but the car still starts with the key. What is going on?

Accepted Answer

Dead CR2032. The remote lock, unlock, trunk, and panic buttons run off the coin cell battery. The transponder chip that authorizes the engine draws its power from the ignition ring inductively, so it does not care about the battery at all. Swap the CR2032, pry the fob shell apart carefully at the seam, and check that the battery contacts are not corroded or bent. If the buttons still do nothing after a fresh battery, the remote board may need to be re-synced to the comfort control module (the J393, address 46 in VCDS). That is a quick on-site fix.
