2009 Acura MDX
Express Key Programming in Ventura County

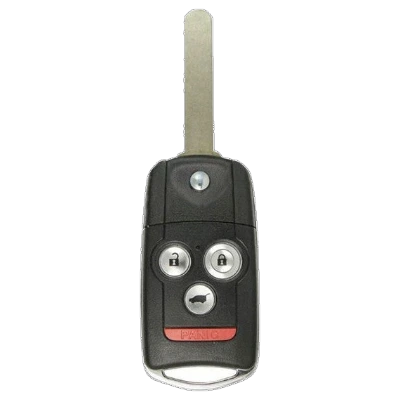

Q: What exactly is a remote flip key on this MDX?

On the 2009 Acura MDX, it is a single unit that combines three things. First, a mechanical blade cut to the HON66 keyway. Second, a Philips ID46 transponder chip that talks to the immobilizer. Third, a 315 MHz remote transmitter board for lock, unlock, hatch, and panic. The battery is a CR1616, listed by Acura as 72148-S0A-000. The transponder is what lets the engine start. The remote only handles the doors and alarm. You can program the remote portion with a key cycle sequence, but the immobilizer chip requires professional diagnostic equipment.

Q: What tools do you use to program MDX keys?

For a 2009 MDX I use dealer-level diagnostics that can handle Honda and Acura Type 6 GEN4 immobilizer systems. That means registering the ID46 chip through the OBD port, not guessing. If all keys are lost, the system goes through a timed security access before it accepts new keys. I also carry HON66 Lishi tools for decoding and cutting on site. Generic locksmiths often skip Acura because they do not invest in the right software for Honda platforms. This MDX is not a hardware store copy job.

Q: My green key light is flashing and it won’t start. Is it the fob battery?

Blunt answer. No. On this MDX, a dead CR1616 only affects the remote buttons. The immobilizer chip does not use that battery. If the green key indicator on the dash keeps blinking and the engine cranks but will not fire, the car is not recognizing the transponder. That can be a damaged ID46 chip inside the key, a lost registration in the immobilizer unit, or in rare cases the ignition antenna ring around the key cylinder. Battery swaps do not fix that.

Q: Can I program a replacement remote myself?

For the door locks, yes. For starting the car, no. The 2009 MDX allows you to enter remote programming mode by cycling the ignition and pressing the lock button in sequence. But once you enter that mode, it erases all stored transmitters. Every remote has to be programmed during the same session. The immobilizer side is different. Adding or replacing the ID46 transponder requires a scan tool that can access the Type 6 GEN4 system. There is no button trick for that part.

Today, Not Thursday | Same-Day Service

Available Thursday

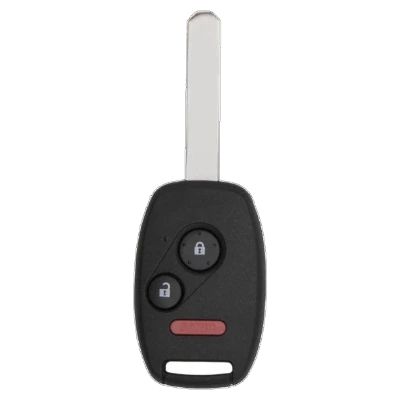

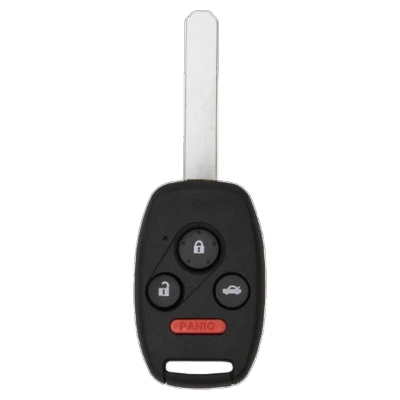

Remote Head

Flip Key

CA BSIS LICENSE LCO#6792

Express Service Fast Programming Back on Road Fast

Fast Response15-25

min arrival

1,000+reviews

Call (805) 790-8162 Text Us

Same-day 2009 Acura MDX car key info from EZ Car Keyz Oxnard CA

Fast Response

Average arrival time: 15-25 minutes

BSIS Licensed

Licensed by the California Bureau of Security

All Keys Lost?

We make new keys from scratch, no existing key needed

805 Special

10% OFFCODE:EZ-805-2026

🔥 Rapid key service, 10% off 🔥

REDEEM (805) 790-8162

2009 Acura MDX
Key Options

Done before your next meeting

Turn Key Ignition

Acura Key Credentials Side by Side

Who has the better track record?

EZ Car Keyz

Dealership

Average Cost

✓ $$

✕ $$$$

Location

✓ We come to you

✕ You drive there

Wait Time

✓ 20-45 min

✕ 2-5 days

Same-Day

✓ Yes

✕ Rarely

All Keys Lost

✓ No problem

✕ Tow required

OEM Quality

✓ Yes

EZ Car Keyz wins 5 out of 6

BSIS licensed with OEM quality guaranteed

Call Experts (805) 790-8162

2009 Acura MDX Remote flip key Replacement - Fast, Affordable & Professional

It was August in Oxnard, parked near Lemon Grove Plaza. Her 2009 Acura MDX had just come back from the vet. Dog in the third row. Engine off. Windows cracked.

She hits unlock on the remote flip key. Nothing. No flash, no click. FCC ID N5F0602A1A, four buttons, Driver 2 key, part 35111-STX-329. I see these all the time on the second gen MDX.

First move was getting the door open so the dog could get out of the heat. Mechanical side was fine. The problem was inside the remote head. When I opened it up, the CR1616 had leaked and the battery contacts were crusted. Acura even had a bulletin years back, 07-046, about remote transmitters quitting because the coin cell fit loose in the holder and lost contact. This one went a step further and corroded the board.

This MDX runs the Type 6 GEN4 immobilizer with an ID46 chip in the key head. The remote and the transponder are two different jobs. I cut and programmed a fresh remote head key, registered it through the OBD port, and tested lock, unlock, rear hatch, and panic. Green key light went out like it should.

From call to engine running was under an hour. She didn’t have to wait on a dealer appointment or leave the car sitting in that parking lot.

Acura MDX Key, No Waiting

Quick response, quick service, quick results. Your key is our only priority when we arrive.

Fast Help (805) 790-8162 Text Us

BSIS Licensed

LCO#6792

CA Bureau of Security & Investigative Services

NASTF Certified

National Automotive Service Task Force

Fully Insured

Liability & vehicle damage coverage

Google Guaranteed

Verified & backed by Google

Acura MDX Lockout Recovery in Action

Emergency resolved, keys in hand

2009 Acura MDX

Remote flip key | Made From Scratch

10-15 min

Emergency ETA

Available Today

Oxnard

Rescue Coverage

805 Area

Emergency Call (805) 790-8162

Real Acura Speed, Real Reviews

Fast work, lasting impressions

C

Christopher H.

Sep 2025

★★★★★

“He arrived within 30 minutes and had everything finished in another 30 minutes for two cars. Everything was programmed and tested perfectly. Cheapest price in town and very honest service.”

Google Review

D

Diya M.

Jan 2025

★★★★★

“Fast, affordable, and a great price. Marco did an amazing job and made a key for our Nissan Kicks quickly and professionally. Everything worked perfectly.”

Google Review

S

Sonia V.

Feb 2024

★★★★★

“Marco came out quickly, cut and programmed a new BMW key fob fast, and was extremely polite and professional.”

Yelp Review

Same-day 2009 Acura MDX key service review - EZ Car Keyz Oxnard CA

★ 5.0 out of 5 - Based on 1,000+ Google Reviews

Same-Day Keys (805) 790-8162

Licensed and Certified Acura Key FAQ

Your questions about mobile service

How do I spot a fake locksmith for my 2009 MDX?▼

Start with the basics. If they cannot tell you your 2009 MDX uses a Type 6 GEN4 immobilizer and an ID46 transponder, that is a red flag. Your OEM remote head key should be FCC ID N5F0602A1A. Driver 1 and Driver 2 have different part numbers, 35111-STX-326 and 35111-STX-329. A real automotive locksmith knows that and will ask which memory key you want. If they quote a tiny service call and say they will decide the rest on site, walk away. If they say “no guarantee on programming,” walk away faster.

What exactly is a remote flip key on this MDX?▼

What tools do you use to program MDX keys?▼

My green key light is flashing and it won’t start. Is it the fob battery?▼

Can I program a replacement remote myself?▼

Questions? Call (805) 790-8162
