Question 1

My key broke in the ignition. Can you get it out?

Accepted Answer

Yes. On the 2009 Escape's conventional ignition cylinder, a broken key fragment can be extracted without pulling the whole column apart or damaging the lock. The typical failure point is near the bow, where the plastic head meets the blade, especially on an older key that's been on a heavy keyring for years.

The bigger issue once the key breaks is the transponder chip. It lives inside the plastic head, not the blade. If the blade snaps off and stays in the cylinder, the chip is sitting outside the ignition read zone, and the immobilizer won't see it. You'll have power, dash lights, everything, but the engine won't turn over. That's not an electrical fault. That's the security system doing exactly what it's supposed to do.

We extract the broken piece, decode the lock, and cut a fresh replacement to spec. You're not going back in with the worn key that broke in the first place.

Question 2

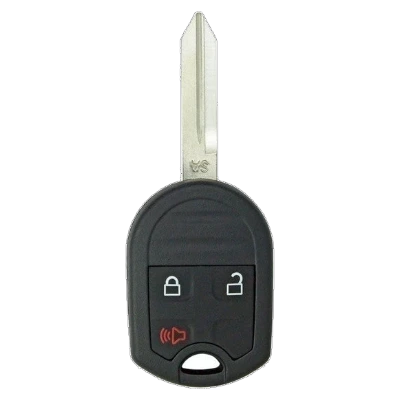

What exactly is a remote head key and how is it different from a regular key?

Accepted Answer

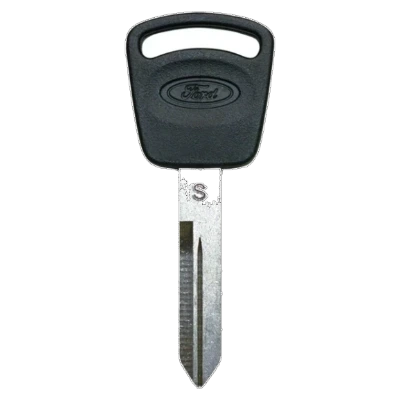

A remote head key combines two things in one unit. The head of the key houses both the transponder chip and the remote fob electronics. The blade folds out or extends from that housing.

The transponder chip communicates with the vehicle's immobilizer every time you turn the ignition. If the chip isn't recognized, the engine won't start regardless of whether the blade fits the cylinder. The remote buttons on the same housing handle your lock and unlock functions wirelessly.

Because both systems live in the same piece of plastic, a cracked or damaged housing can compromise either one. The chip can shift out of its read position, or the remote circuit board can get moisture in through a crack. When a remote head key fails on a 2009 Escape, it's worth knowing which function went first. That points you toward whether you're dealing with the transponder side, the remote side, or just a dead CR2032.

Question 3

My Ford shows a key warning on the dash. What should I do first?

Accepted Answer

Start with the battery. A weak CR2032 in the remote head key is one of the most common reasons the vehicle's security system throws a key-not-detected warning on the 2009 Escape. The transponder itself is passive and doesn't need the battery to communicate with the immobilizer, but a depleted battery can cause the remote side to behave erratically in ways that sometimes get misread as a bigger problem.

If the warning persists after a fresh battery, don't keep cycling the ignition repeatedly trying to get it to catch. The immobilizer on these Fords has a lockout behavior after repeated failed reads, and clearing that condition requires a scan tool. It's not permanent damage, but it turns a simple programming call into a longer diagnostic visit.

One other thing: if the key warning appeared right after you had any work done near the instrument cluster or battery, a module reset can sometimes drop learned key data. That's a programming fix, not a new key fix.

Question 4

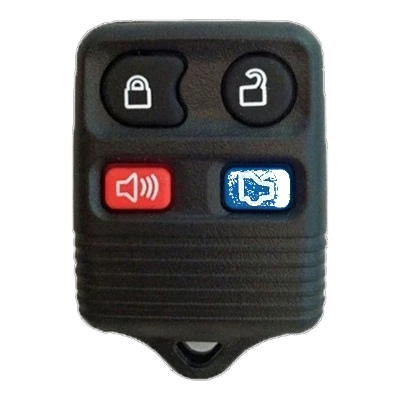

I bought a replacement fob online for my 2009 Escape. Can I program it myself?

Accepted Answer

The remote portion of a 2009 Escape remote head key does have an onboard programming sequence that works through the ignition. You cycle the key in and out of the ignition a specific number of times within a set window, the system enters programming mode, and you press a button on the fob to register it. Owners on Ford forums have documented this working for the remote functions on this generation of Escape.

Here's the catch: that sequence programs the remote side only. The transponder chip still needs to be programmed separately using professional equipment. So if you bought a replacement remote head key online, you might be able to get the lock and unlock buttons working yourself, but the key still won't start the car until the transponder is enrolled by a locksmith or dealer. Both steps are needed. Neither one covers the other.

Question 5

Does the 2009 Escape need two working keys on hand to make a spare, or can you work from one?

Accepted Answer

One working key is enough. I've done plenty of these in Ramona with only one key present.

The all-keys-lost situation, where someone has zero working keys, is also handleable on this vehicle. It takes longer and requires diagnostic equipment to enroll the new key from scratch, but it's not a dealer-only job. If you're down to one key on a 15-year-old Escape, get a spare made before that one key becomes the problem.
