Question 1

My key broke in the ignition. Can you get it out?

Accepted Answer

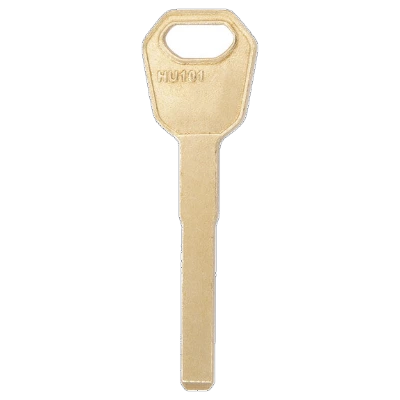

Yes, and it is a more common call than people expect on these. The 2012 Escape has a traditional ignition cylinder, so extraction is a mechanical process. The tricky part is that once the blade snaps, the transponder chip that was in the key head is no longer sitting in the right position for the immobilizer to read it. So the dash may light up and nothing else happens, which some owners misread as an electrical problem.

What I do is extract the broken piece without damaging the cylinder, decode the lock, and cut a fresh replacement key to match. The new key gets programmed so both the remote functions and the immobilizer side are good to go. I do not hand you back a barely-working fix. If the cylinder took damage during the break, I address that too.

Question 2

What exactly is a remote head key, and how is it different from a regular key?

Accepted Answer

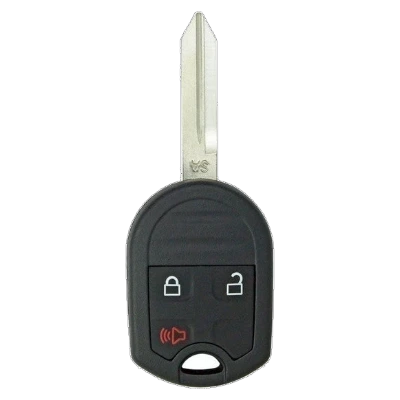

A remote head key is a single unit where the key blade, the transponder chip, and the lock and unlock buttons all live in the same plastic housing. Your 2012 Escape uses one. When you turn it in the ignition, the chip talks to the immobilizer. If the vehicle does not recognize that chip, the engine either will not crank or it starts and immediately dies.

The remote portion handles your door locks wirelessly. Both functions run off the same key, but they are independent of each other. A dead CR2032 battery will kill your remote range and can make the buttons feel sluggish, but it will not stop the car from starting, because the transponder side does not rely on the battery. It reads passively from the ignition coil ring. If your buttons stopped working but the car starts fine, swap the battery first. If the car is not starting and the buttons are also dead, those are likely two separate things to diagnose.

Question 3

My Ford is showing a key-not-detected warning. What should I do?

Accepted Answer

Start with the battery. A weak CR2032 in the remote head key is the most common cause of intermittent detection issues on the 2012 Escape. Pull the old one, put in a fresh CR2032, and test again.

If the battery swap does not clear it, try using your other key if you have one. That tells you quickly whether the problem is with the specific key or with something in the vehicle. If the second key works, the first key needs to be looked at or replaced.

One thing I would say: do not sit there cycling the ignition over and over trying to force a start when the immobilizer is not reading the key. Repeated failed attempts can complicate the situation and make the diagnostic step longer. If swapping the battery does not fix it, call someone with the right equipment to read what is actually going on before you make it worse.

Question 4

I bought a replacement fob online. Can I just program it myself?

Accepted Answer

Not on this one. The 2012 Escape remote head key requires professional diagnostic equipment to enroll the transponder to the vehicle's immobilizer. There is no ignition-turn sequence or button trick that handles the immobilizer side on this system. Some older Ford models did have an onboard add-a-key procedure, but it does not apply here.

The remote button functions alone might be possible to pair through a specific sequence depending on the exact setup, but without enrolling the chip, the key will not start the car. So if you bought a key online to save money, you still need someone with the right tools to finish the job. That is a very common call I get.

Question 5

I only have one key left for my 2012 Escape. Should I get a spare made now or wait until I need it?

Accepted Answer

Get it made now. All-keys-lost on a remote head key system is a longer, more involved job than adding a spare while you still have a working key. When you have one key present, the process goes faster and the cost is lower.

Lose that last key and the job changes. The immobilizer has no reference point, the vehicle has to be accessed without a working key, and the programming step is more complex. Forum threads from Escape owners in that situation consistently show it costs significantly more and takes longer. A spare made today is cheap insurance against that scenario.
