Question 1

My key blade broke off in the ignition. Can you get it out?

Accepted Answer

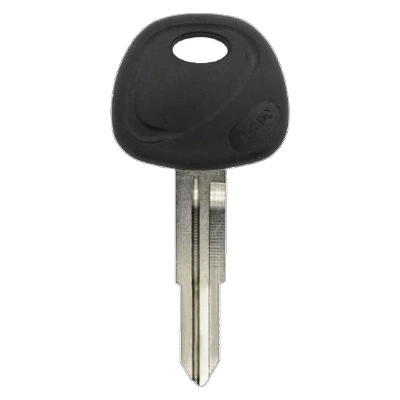

Yes, and it's one of the more common calls I get on older Hyundais. The 2004 Elantra uses a conventional ignition cylinder, so broken key extraction is something I handle on site. The blade can snap if it's worn thin or if someone forced a turn with the wheel locked up. I extract the broken piece without pulling the cylinder in most cases, then cut a fresh blade from your vehicle's key code or by reading the lock directly. If the transponder component was in the piece that broke, I handle that side too. You don't need a tow.

Question 2

What exactly is a "remote" key and what makes it different from a regular key?

Accepted Answer

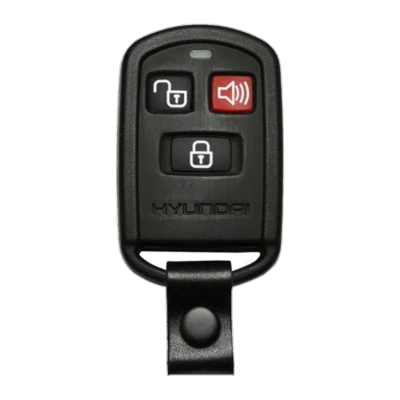

On your 2004 Elantra, the remote is the plastic fob with three buttons: lock, unlock, and trunk release. It works independently from the ignition key blade. The blade itself carries a transponder chip that talks to the immobilizer when you turn the key, and that's what lets the engine run. The remote just handles the door locks and trunk wirelessly.

When the fob shell cracks or a button pad wears out, the electronics inside sometimes survive intact. A locksmith can transfer working internals into a new shell without reprogramming anything. But if the circuit board is damaged or the remote is completely dead beyond the battery, a full replacement is the cleaner fix.

Question 3

My Hyundai is showing a key warning on the dash. What do I do first?

Accepted Answer

On the 2004 Elantra, a key-related warning at startup usually points to the transponder not being read correctly, not the remote fob. These are two separate systems. The remote dying won't trigger a no-start or an immobilizer warning. If the car cranks and immediately stalls, or refuses to start at all while showing a security-related indicator, that's the transponder side.

First thing to check: is the key a known-good original, or a copy that was cut somewhere without proper chip programming? Generic key blanks cut at hardware stores won't carry the right transponder. If you've always used an original key and this just started, the ignition cylinder's antenna ring, which reads the chip as you turn the key, can develop a fault on vehicles of this age. That's a vehicle-side diagnosis I handle on site.

Question 4

I bought a replacement fob online. Can I program it myself, or do I need a locksmith?

Accepted Answer

Good news on this one: the 2004 Elantra remote has an onboard programming sequence that doesn't require dealer-level equipment. It's done through a specific series of steps using the door lock and the ignition without any tools plugged into the OBD port. That said, the sequence is timing-sensitive, and if you have a fob from a different region or a clone with a mismatched frequency, it won't pair no matter how perfectly you run the steps.

If you've already tried the self-programming sequence and it didn't take, the most common reasons are a mismatched fob, a timing error during the procedure, or a vehicle-side issue with the receiver module. I can sort out which one it is and get it done on site. The transponder chip in the key blade is a separate matter and does require programming equipment regardless.

Question 5

My remote locks and unlocks the car fine, but the car won't start. Are those problems connected?

Accepted Answer

Not directly. On the 2004 Elantra, the remote and the immobilizer are independent systems. The remote working perfectly tells you the fob battery is fine and the receiver is seeing the signal. But the transponder chip in the key blade is what the immobilizer reads during startup, and that part of the circuit doesn't care whether your remote works.

If the car cranks normally but stalls right away, or won't start at all with no obvious mechanical reason, the transponder is the first thing to diagnose. It could be a worn chip, a damaged key, or the antenna ring around the ignition cylinder losing its read. That's something I check on site before assuming anything needs to be replaced.
