2005 Volvo S40
Key Replacement - Save vs Dealer in Ventura County

2005 Volvo S40 Remote Head Key Replacement - Fast, Affordable & Professional

Out in Ojai near Soule Park Golf Course, a guy lost his only key to a 2005 S40 somewhere between the parking area and the course. Spent half an hour retracing his steps, checked with the clubhouse, nothing. His car just sat there.

I told him I could be out that afternoon.

When I got there, I started with my HU101 Lishi to pick and decode the door lock, reading every wafer position for the blade cut. That is the simple part. All-keys-lost on these P1 platform Volvos means I also need the CEM. On the 2005 S40, it sits behind the glovebox. I pulled it, connected to the EEPROM on the board, read the encrypted key data, generated a fresh transponder code, and wrote it back.

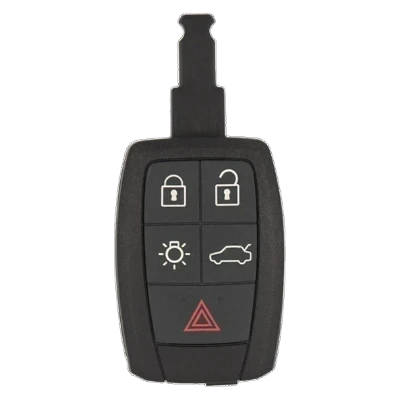

Then I cut the KR55WK49250 remote head key, programmed the ID46 transponder chip, and synced all five remote buttons. He watched most of it from a bench near the lot.

His S40 started right there on the grass-edged pavement. He had that look people get when something they thought was a two-day problem just went away in about an hour.

The dealer route on these would have meant a flatbed tow out of Ojai, days at the service bay while they ordered parts and ran VIDA sessions, and a bill that would have stung. He drove home instead.
