Question 1

My key blade snapped off inside the ignition. Can you get it out?

Accepted Answer

Yes, broken key extraction is a standard mobile job. I use extraction tools designed to grip or hook the broken piece without chewing up the ignition cylinder walls. On a 2002 4Runner the ignition cylinder is accessible without pulling the steering column apart, so this usually goes smoothly.

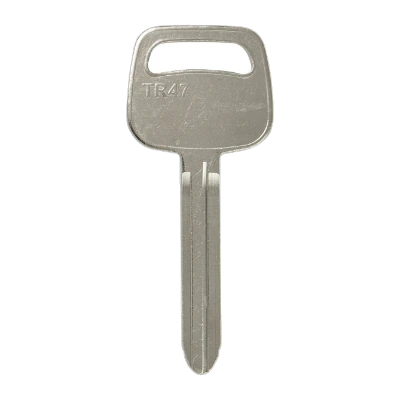

Once the piece is out, I can cut a new key either by reading the remaining fragment or by decoding your door lock directly. If your existing remote fob shell is intact with a snapped blade, the transponder chip inside is almost certainly fine. In that case I can transplant it into a new shell and cut a fresh blade, which gets you back to a fully working key without reprogramming from scratch. If the whole fob is damaged, we do a full cut and program on site.

One thing I see often on 4Runners this age: the key wears at the shoulder where the blade meets the plastic head. It does not snap dramatically, it just cracks and works loose over years of daily use. If your blade is showing stress cracks near the base, that is your warning to get a spare made before it becomes an extraction job.

Question 2

What exactly is a "remote" key and what does mine do?

Accepted Answer

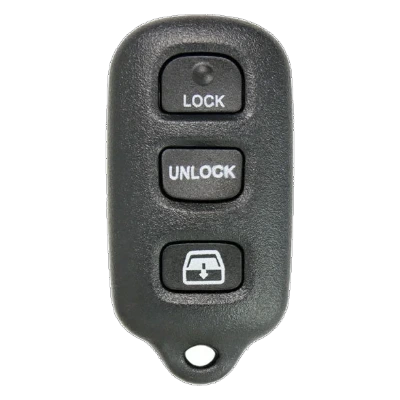

On your 2002 4Runner, the remote is a combination unit. One side is a physical key blade that turns the ignition. Embedded in the head is a transponder chip that talks to the immobilizer when you crank the engine. The fob side has four buttons that send a radio signal to a receiver in the truck for locking, unlocking, and the panic alarm.

Two systems, one key. If the remote buttons stop working but the engine still starts, the transponder and blade are fine and you have a battery or fob issue on the remote side. If the engine cranks but immediately stalls, that is the immobilizer not recognizing the chip, which is a different problem entirely. Knowing which half failed tells me exactly what I am walking up to fix.

Question 3

My 4Runner is showing a key warning on the dash. Where do I start?

Accepted Answer

Start with the CR2032 in the fob. A weak battery is the most common reason for reduced range or a key-not-detected warning on Toyotas from this generation. Pop the fob open with a small flathead wrapped in a cloth to avoid scratching the shell, swap the battery, and retest from about 20 feet.

If a fresh battery does not fix it, try the blade in the door lock manually. If the door lock cylinder turns but the remote buttons do nothing, the issue is likely the fob receiver or the fob itself. If the engine cranks and immediately dies, that points to the immobilizer not reading the transponder chip, and that is a different diagnosis path.

On 2002 4Runners specifically, forum owners report that the door lock receiver module can develop connection issues over time, causing intermittent remote failure even with a good battery and a working fob. Before assuming the fob is bad, I always check that the receiver is seated properly and its connector has not corroded. Replacing the fob when the receiver is the actual problem is a waste of money.

Question 4

I bought a replacement fob online. Can I program it myself to my 2002 4Runner?

Accepted Answer

There is actually an onboard add-a-key procedure for the remote side on this generation 4Runner that some owners pull off at home. It involves a timed sequence using the driver door lock and the ignition, and it registers new remotes to the truck without a programmer. The catch: it erases all previously registered fobs at the start of the sequence, so every remote you want to keep, including your current working one, has to be re-registered in the same session. Forget to grab a fob and it stops working after you close out the procedure.

The transponder chip in the blade is a separate enrollment that generally does require programming equipment.

If the online fob you bought has the correct factory FCC ID on the label and matches the original unit, the remote programming sequence is worth attempting. If the fob does not match or the sequence fails after two tries, call me. I bring the equipment to finish it and I have seen plenty of "almost worked" DIY attempts that needed a clean restart.

Question 5

How long does a 2002 4Runner key replacement actually take when done on site?

Accepted Answer

For a standard spare with an existing working key: about 20 to 30 minutes on site. Cutting the blade, confirming the transponder chip, programming, and testing all four remote buttons plus ignition start.

All-keys-lost takes longer because there is no working key to reference and the programming process requires more steps to establish the first registered key from scratch. Budget closer to 45 to 60 minutes for that scenario.

Either way, I come to you. In the Las Americas Area of San Ysidro that matters, because the nearest Toyota dealer is not a short drive and their key department is not always staffed same-day for walk-ins.
