Question 1

My key broke in the ignition on my 2005 4Runner. Can you get it out?

Accepted Answer

Yes, broken key extraction is a standard on-site job. The fourth-gen 4Runner ignition cylinder is serviceable with the right extraction tools, and I carry them. The process involves carefully removing the broken piece without damaging the cylinder walls or the wafer tumblers inside. Once it is out, I can cut and program a new key on the spot.

One thing to watch on these trucks: if the blade snapped because the cylinder itself is worn or sticky, extraction solves the immediate problem but the cylinder wear is still there. I will tell you if I see that during the job so you are not surprised later.

Question 2

What exactly is a transponder key and how does it work on the 2005 4Runner?

Accepted Answer

The key blade does the mechanical job of turning the lock tumblers. Inside the plastic head of the key, there is a small transponder chip. That chip carries no battery of its own. When you insert the key and turn it, an antenna coil wrapped around the ignition cylinder sends out a low-frequency signal that powers the chip for a split second. The chip responds with its registered code. The immobilizer reads that code, confirms it matches what is stored, and only then allows the engine to run.

If the code does not match, or if no chip is detected at all, the engine will crank and then die within one or two seconds. That is the system working exactly as designed.

On the 2005 4Runner, programming a new chip to the immobilizer requires diagnostic equipment connected through the OBD port. There is no ignition-turn sequence or button trick that enrolls a new key on this system. The chip has to be written by a tool that can communicate with the immobilizer directly.

Question 3

My 2005 4Runner cranks but dies right away. Could it be the key?

Accepted Answer

That pattern, cranks fine then stalls within a second or two, points directly to the immobilizer not recognizing the chip. A few things cause it.

The chip inside your key head can crack or separate from the internal antenna without any visible damage to the outside of the key. Especially on a 20-year-old key that has taken some drops or heat. Also, aftermarket key copies sold online sometimes carry a blank or poorly cloned chip that never gets fully registered to the vehicle.

Check the plastic head of your key for any cracks near where it meets the blade. If the housing has been repaired with epoxy or tape at any point, the chip positioning may have shifted. If you have a spare key, try that one. If the spare starts the truck and holds, the chip in the primary key is the issue, not the vehicle. If neither key works, that is when you call me for an on-site diagnosis and programming.

Question 4

Can I buy a transponder key online and have you program it, or does it have to come from you?

Accepted Answer

Short answer: sometimes, but it is a gamble you are taking, not me.

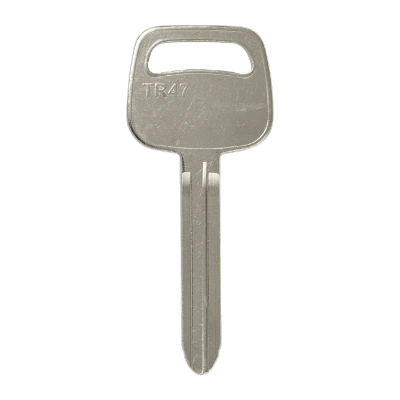

The 2005 4Runner uses a specific key blank that needs to match the ignition blade cut and carry the correct type of transponder chip inside. Keys sold as compatible online vary a lot in actual chip quality. Some work fine. Some have chips that either will not communicate properly with the immobilizer or program once and then fail after a few weeks of heat cycling in a hot car.

If you bring me a key you already bought, I will look at it. If the blade style is correct and the chip type checks out on my equipment before I cut it, I will tell you it is workable. If something looks off, I will tell you that too and we go from there. Buying through me removes the variable because I know exactly what I am putting in.

Question 5

How long does it take to get a replacement transponder key made on site for a 2005 4Runner?

Accepted Answer

Usually 20 to 30 minutes from the time I open the van to the time I hand you a tested key. Cutting the blade from a decoded lock or existing key takes a few minutes. The programming process through the OBD port on a fourth-gen 4Runner runs its relearn cycle in the background while I do other checks, so nothing sits idle. I do three consecutive test starts before I call the job done. If your ignition cylinder is worn and slowing down the extraction or cutting step, add some time, but it is still a same-day job.
