Question 1

My key broke off in the ignition. Can you get it out without replacing the whole cylinder?

Accepted Answer

Usually, yes. Broken key extraction on the Canyon is a standard call. I use a dedicated extractor to work the blade out without scoring the cylinder walls. Once it is out, I decode the cut from the extracted piece or from the lock itself and cut a new key on the spot. Whether programming is needed depends on the condition of your original key situation, but the extraction and cut happen right there in your driveway. Most Canyon ignition cylinders hold up well enough that extraction is clean and the cylinder stays in service. If the cylinder was already worn and the break made it worse, I can talk you through what the options look like before you commit to anything.

Question 2

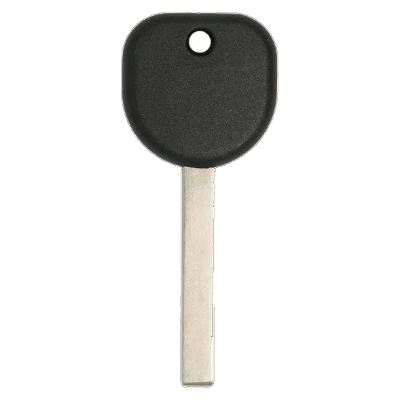

What exactly is a transponder key and how does it work on the 2016 Canyon?

Accepted Answer

A transponder key has a small chip sealed inside the plastic head of the key. When you turn the key in the ignition, a coil ring around the cylinder energizes the chip and reads a code. If the code matches what the immobilizer has on file, the engine is allowed to start. If it does not match, or if the chip is not read at all, the vehicle will crank but not fire, or in some cases will not crank at all.

On the 2016 Canyon, this is a blade-turn key with no remote functions attached. There are no buttons, no fob battery, no lock and unlock built into the key head. It is purely an ignition key with a chip inside. That also means there is no battery to go dead and no remote to lose signal. When these keys fail, it is almost always the chip going unread, the cut wearing down over time, or the key head cracking and shifting the chip out of position relative to the reader coil.

Question 3

My Canyon is showing a theft deterrent warning and will not start. What is going on?

Accepted Answer

A theft deterrent warning with a no-start almost always points to the immobilizer not reading the chip in your key. A few things can cause that. The key itself may be worn or the chip inside may have shifted or cracked. The antenna ring around the ignition cylinder, which reads the chip, can fail or lose its connection. And on some GM trucks from this era, owners on the forums have reported that a low vehicle battery voltage can cause the reader to drop out intermittently, so the no-start comes and goes and is hard to pin down until someone checks the battery.

Start by trying your spare key if you have one. If the spare starts it, your primary key is the problem. If neither key works and the warning stays on, that points to the antenna ring or a module issue rather than the key itself. Either way, call me before you do anything else. A tow to the dealer is not your only option.

Question 4

Can I program a second key myself if I already have one working key?

Accepted Answer

There is an onboard relearn procedure available for this generation of GM mid-size trucks that can work when you already have a programmed key in hand. The sequence involves specific ignition cycling steps that prompt the vehicle to accept an additional key. It is not complicated, but the timing matters and you need an unprogrammed blank that is already cut to your vehicle before you start.

Where it falls apart for most people is the blank. You cannot walk into a hardware store and grab one of these. The key head contains a chip that has to be the right type for the system to accept it, and a blank without the correct chip will not register no matter how many times you run the sequence. If you have a working key and want to add a spare, call me. I bring the right blank, cut it to your lock, and walk through the relearn. It is a short visit.

Question 5

I bought a pre-cut replacement key online. Will it work, or does it still need programming?

Accepted Answer

It still needs programming. The cut gets you into the door and turns the ignition cylinder, but the chip inside that key head is blank until it is registered to your vehicle. Without programming, the engine will not start, or it will crank and immediately kill, which is exactly what the immobilizer is designed to do.

Also worth checking: make sure whoever sold you that key used a blank with the correct chip type for the Canyon. Not every GM-looking blank is the right one. If the chip family is wrong, no amount of programming will make it work. Bring the key you bought and I can check it before we go any further.
