Question 1

Do I have to go to the Mazda dealer to get a replacement key for my 2009 Mazda 3?

Accepted Answer

No. A mobile locksmith with the right equipment can cut and program a transponder key for the 2009 Mazda 3 on site, wherever the vehicle is parked. The dealer is not the only path here. This generation of Mazda 3 also supports an onboard add-a-key procedure when a working key is present, which means the job can sometimes be done without going through the OBD port at all. Even in all-keys-lost situations, a locksmith with OBD programming capability handles it the same way a dealer tech would. Some Mazda owners are surprised to learn the dealer may send the work out anyway. Calling a mobile locksmith directly skips the middleman and the waiting room.

Question 2

What exactly is a transponder key and why does my 2009 Mazda 3 need one?

Accepted Answer

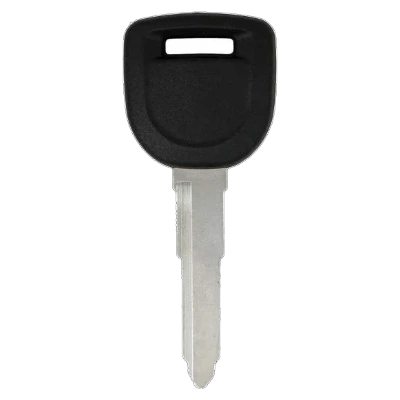

The transponder key looks like a regular metal key, but there is a small chip embedded inside the plastic head. When you insert it and turn the ignition, an antenna ring around the cylinder reads the chip. If the code matches what the immobilizer has stored, the car starts. If it does not match, or if the chip is missing entirely, the engine will crank and then cut out immediately. A plain metal key cut to the exact same blade profile will do the same thing: crank and die. The chip is not optional on this vehicle. It is part of every start cycle.

Question 3

How long does the dealer take for a Mazda 3 key replacement, and what should I expect?

Accepted Answer

Longer than the job itself actually takes. Owners report being told to plan on a couple of hours, and that is assuming the dealer has the correct key blank in stock. If they need to order it, you are looking at a separate trip after the part arrives. Then there is the scheduling window on top of that. The programming itself on a 2009 Mazda 3 is not a long process, but service bay queues and parts availability stretch the timeline considerably. With EZ Car Keyz, it is one visit to your location in Simi Valley, done in well under an hour in most cases, no appointment backlog and no waiting on a parts order.

Question 4

My 2009 Mazda 3 cranks but immediately stalls every time I try to start it. Could this be a key or immobilizer issue?

Accepted Answer

Yes, that specific symptom, cranks and immediately dies, is one of the most common signs of a transponder not being read correctly by the immobilizer. It means the engine is getting the command to crank but the security system is not authorizing fuel or spark to continue.

A few things cause this. The chip inside the key head can fail, especially in a key that has taken physical damage or been on a heavy keyring for years. The antenna ring around the ignition cylinder can also develop a fault and stop reading the chip reliably. And occasionally, a key that was cut from the wrong blank never had the right chip to begin with.

First thing I check is whether the key has visible damage to the plastic head where the chip sits. After that it is testing with a known-good key if one exists, or running a diagnostic read at the OBD port to see what the immobilizer is reporting. The fix could be a new key, or it could be the antenna ring. Worth sorting out before assuming the worst.

Question 5

I bought a replacement key blank online for my 2009 Mazda 3. Can I just get it cut and skip the programming?

Accepted Answer

Not if it is supposed to start the car. The blade cut handles the mechanical side, meaning it turns in the ignition cylinder. But without a matched transponder chip inside the key head, the immobilizer will not authorize the engine to run. The key also has to be programmed so the chip ID is stored in the vehicle's security system. Cutting alone gets you halfway there. If the blank you bought does not carry the correct chip type for this generation Mazda, even programming it will not work. Before I cut anything a customer brings in, I verify the blank is the right one for this application.
