Question 1

My key broke off in the ignition. Can you get it out?

Accepted Answer

Yes, and it's worth doing correctly rather than quickly. On the 2006 F-150, the ignition cylinder is in the steering column, and a broken key that leaves a fragment inside means two things: you can't insert a new key, and the transponder chip from the broken key is no longer sitting in the read zone. The security light will usually flash or a key-not-detected warning may appear because the chip isn't positioned where the antenna can see it.

I extract the fragment without pulling the whole cylinder if I can avoid it, then decode the lock mechanically so any replacement key is cut to the correct depths. You don't want a fresh key cut to a worn impression of the broken one. A key that broke once will break again faster if the cut isn't spot on.

Question 2

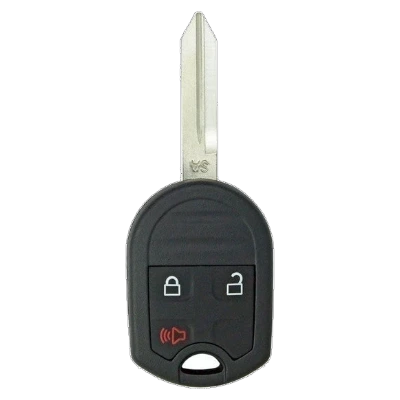

What exactly is a remote head key and how is it different from a regular key?

Accepted Answer

A remote head key is a single unit where the fob is built directly into the key head rather than sitting on a separate ring. Your 2006 F-150 uses this setup. The key blade turns in the ignition like any traditional key, and the transponder chip inside communicates with the immobilizer to verify the key is authorized before the engine will run. Separately, the fob portion sends a radio signal to handle lock and unlock functions.

The three buttons control your door locks and one additional function. The CR2032 battery powers the remote side only. The transponder chip is passive, meaning it pulls power from the antenna in the ignition collar and needs no battery at all.

That last point matters: a completely dead fob battery does not stop the truck from starting. It just kills your remote functions. If the truck won't start, the battery is not the reason.

Question 3

My F-150 is showing a key warning on the dash. What should I do first?

Accepted Answer

Start with the CR2032. A weak battery is responsible for more of these calls than anything else. If the remote functions have been getting flaky, short range, slow response, only working when you press the button close to the door, the battery is usually the first thing to rule out.

If swapping the battery doesn't clear it and the truck still cranks but dies after a second or two, stop cycling the ignition. The immobilizer on this generation F-150 can enter a lockout state after repeated failed attempts, and digging a deeper hole makes the job more involved. That's a call for a technician with the right diagnostic equipment.

If the truck won't crank at all and the security light is flashing, same advice: don't keep trying. Note what the dash is showing and call someone who can pull codes and check key data.

Question 4

I bought a replacement fob online. Can I program it myself, or do I need a tech?

Accepted Answer

The 2006 F-150 does have an onboard programming sequence for the remote functions, and it's owner-accessible. You cycle the ignition in a specific pattern within a set time window, the system enters programming mode, and pressing a button on each fob registers it. Ford included this in owner documentation for this generation.

Here's the catch: that sequence handles the remote lock and unlock side only. The transponder chip, the part that actually allows the truck to start, has to be programmed with a diagnostic tool. So if you bought a replacement key online and want full functionality, you can potentially handle the remote pairing yourself, but you still need a technician to program the chip side. Doing one without the other gets you a key that either starts the truck but won't remote-lock it, or locks and unlocks but won't start the truck.

Call me and I can do both in one visit.

Question 5

Do I need to erase my old keys when I get a new one made?

Accepted Answer

Depends on the situation. If you still have your working keys and just need an additional one cut and programmed, you don't have to erase anything. The system on this generation F-150 can hold multiple keys in memory simultaneously.

If you lost a key, that's a different conversation. A lost key is still a valid key in the truck's memory. It can start the truck if someone finds it. In that case, clearing all stored keys and re-enrolling only the ones in your possession is the right move, not just adding a new one. I can do that in one appointment and confirm which keys are active before I leave.
