Question 1

My key broke in the door lock. Can you get it out?

Accepted Answer

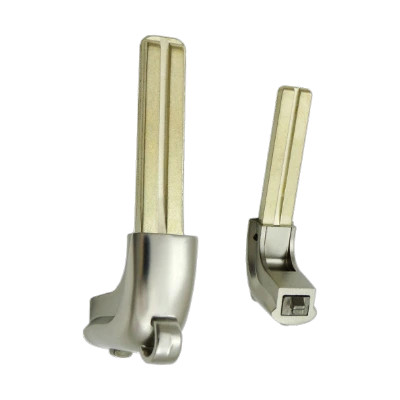

Yes. The 2009 ES has an emergency blade tucked inside the smart fob for exactly this situation, and if that blade gets forced into a door lock and snaps, that is a real problem but not an unrecoverable one. I extract the broken piece from the lock without pulling the cylinder, then decode the lock to get the correct cut profile, and cut a new blade to match. The fob housing itself stays intact through all of this. No need to replace the whole smart key assembly unless the electronics inside took damage from whatever caused the break in the first place.

Question 2

What exactly is a smart key and how is it different from a regular key?

Accepted Answer

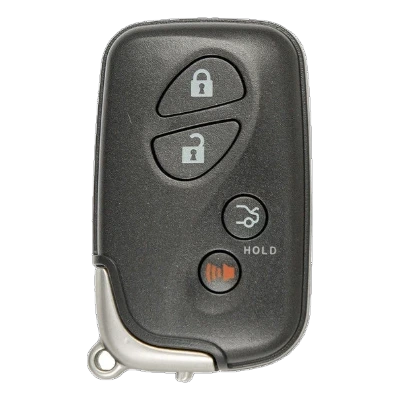

The fob your 2009 Lexus ES uses does not go into an ignition cylinder. You carry it, the car senses it when you are near the door handles, and you start the car with a button on the dash. Inside the fob is a transponder that talks to the vehicle security system and an RF transmitter that handles lock and unlock. There is also a mechanical blade folded inside for emergencies like a dead car battery when you need to physically unlock the door.

It has four buttons total. Lock, unlock, and the other two. If one function stops working while others still work, that points to a specific circuit on the fob board rather than a total failure, and sometimes it is repairable rather than a full replacement.

Question 3

My Lexus is showing a key-not-detected warning. What should I try first?

Accepted Answer

Hold the fob directly against the start button face and press. This generation has a backup antenna built into the button area that can power the transponder inside the fob passively, even with a completely dead battery. If the car starts that way, your fob is fine and you just need a fresh CR1632. Use a name-brand cell.

If pressing the fob directly to the button does nothing, the problem is either the fob electronics, the vehicle's antenna or reception module, or an incomplete key registration from a previous service. At that point it needs a diagnostic read, not a battery swap.

Question 4

I bought a replacement fob online. Can you just program it, or does it have to be a specific fob?

Accepted Answer

This comes up constantly. The short answer: it depends on what you bought.

The 2009 ES uses the factory fob with a specific FCC authorization. Aftermarket fobs vary a lot in quality, and some will pair for remote functions but fail the security handshake for push-button start. That is how you end up with a fob that locks and unlocks but the car will not start with it, which is exactly the partial-registration problem I described above.

If you have the fob in hand already, bring it. I can tell you on site whether it is going to work before you spend money on programming. If it will not clear the security handshake, a factory-spec replacement is the move. Either way, programming has to be done through the diagnostic port. There is no self-programming sequence on this vehicle.

Question 5

How many keys can the 2009 Lexus ES hold in memory, and does adding a second one wipe the first?

Accepted Answer

The system holds multiple fobs. Adding a second key does not erase the first one, as long as the registration is done correctly through the all-keys-present procedure. The existing fob has to be present and re-registered alongside the new one or it loses authorization.

Where people get into trouble is when they hand a car off and the previous owner still has a fob that works. That old fob can still start the vehicle unless someone does a full reset and re-registers only the keys you want active. If you bought this car used and are not certain what keys are out there, a reset and fresh registration on just your fob is worth doing.
