Question 1

My key broke in the door lock. Can you get it out?

Accepted Answer

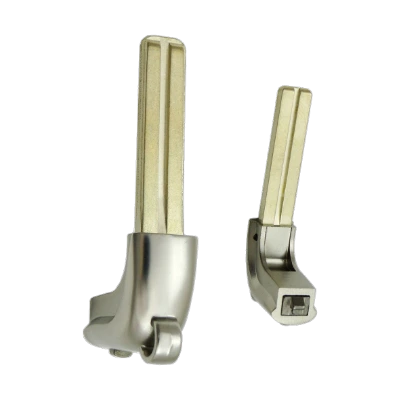

Yes. The 2009 LX has an emergency mechanical blade that lives inside the smart fob. If that blade snaps in the door lock cylinder, which does happen when people force it in cold weather or at a bad angle, we extract the broken piece without pulling the lock apart if we can help it. Once it's out, we decode the lock or pull the original key specification from vehicle records and cut a new blade to match. You don't want to keep using a worn or compromised blade on a high-security door lock, so if the original was already chewed up, a fresh cut is the right call anyway.

Question 2

What exactly is a smart key and how is it different from a regular car key?

Accepted Answer

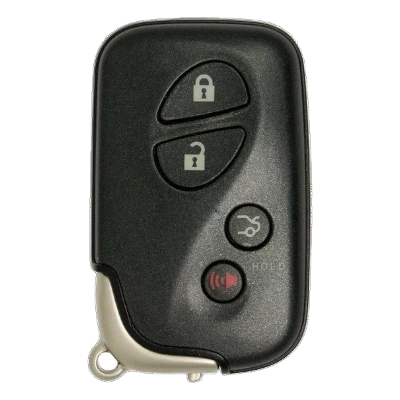

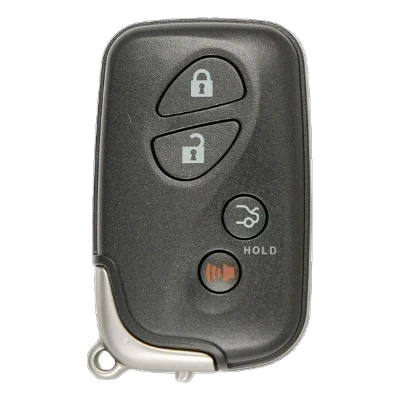

The fob your 2009 LX uses does more than one job. It communicates with the vehicle's immobilizer system passively, meaning the car is reading it through the door handles and the cabin antennas before you ever press a button. It also carries the remote entry functions across its four buttons. And inside the fob body there's an emergency blade for situations where the electronic side fails or the battery dies completely.

That layered setup is why a replacement isn't just a cut key. The fob has to be enrolled into the vehicle's security system by someone with the right diagnostic equipment. A fob that isn't registered will open nothing and start nothing, regardless of how new it is.

Question 3

My LX says it can't detect the key. Where do I start?

Accepted Answer

Start with the fob held directly against the start button, flat contact, and then press. When the CR1632 is dead or nearly dead, the vehicle can power the fob inductively through the button area and still complete the start authorization. If that works, you need a fresh CR1632, name brand, and check that the battery contacts inside the fob are clean and seated correctly. A slightly bent clip or a battery that's just a hair off-center will cause intermittent detection problems that look a lot worse than they are.

If holding the fob to the button doesn't work at all, the issue moves past the battery. Could be the fob itself, could be the vehicle's antenna or reception module. On this generation LX, a few owners have traced a key-not-detected condition to the smart key receiver rather than the fob, especially after water intrusion. That's a diagnostic job, not a battery swap.

Question 4

I bought a replacement fob online. Can you just program it to my LX?

Accepted Answer

Yes, as long as the fob is the correct one for this vehicle. The factory FCC ID on the fob has to match what the 2009 LX expects. If someone sold you a fob spec'd for a different year or a different Lexus model, it won't register correctly no matter what equipment is used.

Assuming you have the right fob, programming it requires diagnostic equipment and the full security enrollment sequence. There is no button combination or ignition-turn trick on this vehicle. Bring the fob and we'll confirm compatibility before doing anything else.

Question 5

Can the steering lock cause a no-start even after the smart key is programmed?

Accepted Answer

It can, and this is one of the things that catches people on the 2009 LX specifically. The electronic steering lock module is part of the start authorization chain on this vehicle. If the steering lock doesn't complete its release cycle, the engine won't start even when the immobilizer side is correctly enrolled. Owners on Lexus forums have documented cases where a new or re-enrolled key appeared to work, the dash showed no warnings, but the start button still produced nothing because the steering lock module was holding the sequence up. A proper all-keys-lost procedure on this vehicle accounts for that module. If it wasn't part of whoever's process, that's worth looking at.
